JMII膜片联轴器

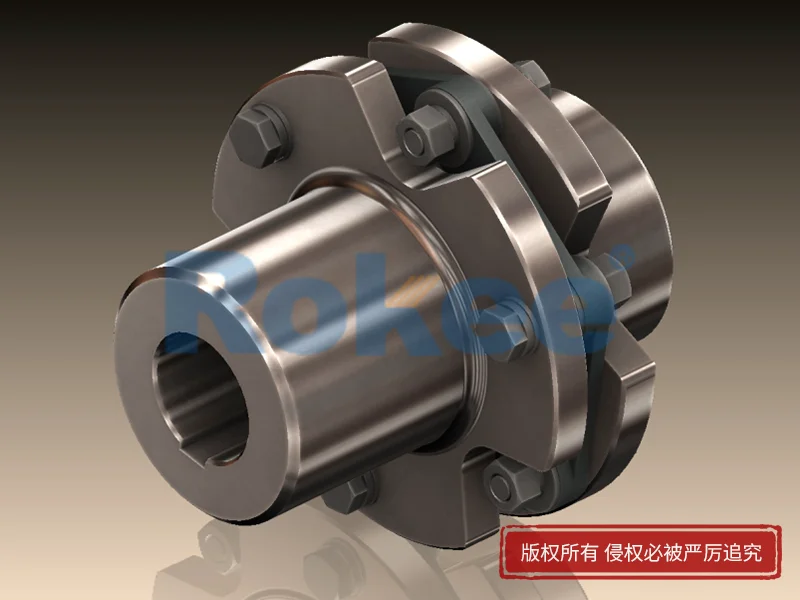

JMII金属膜片联轴器也是单节式设计但不带沉孔,适用于传递距离更短的场合,结构更加紧凑。

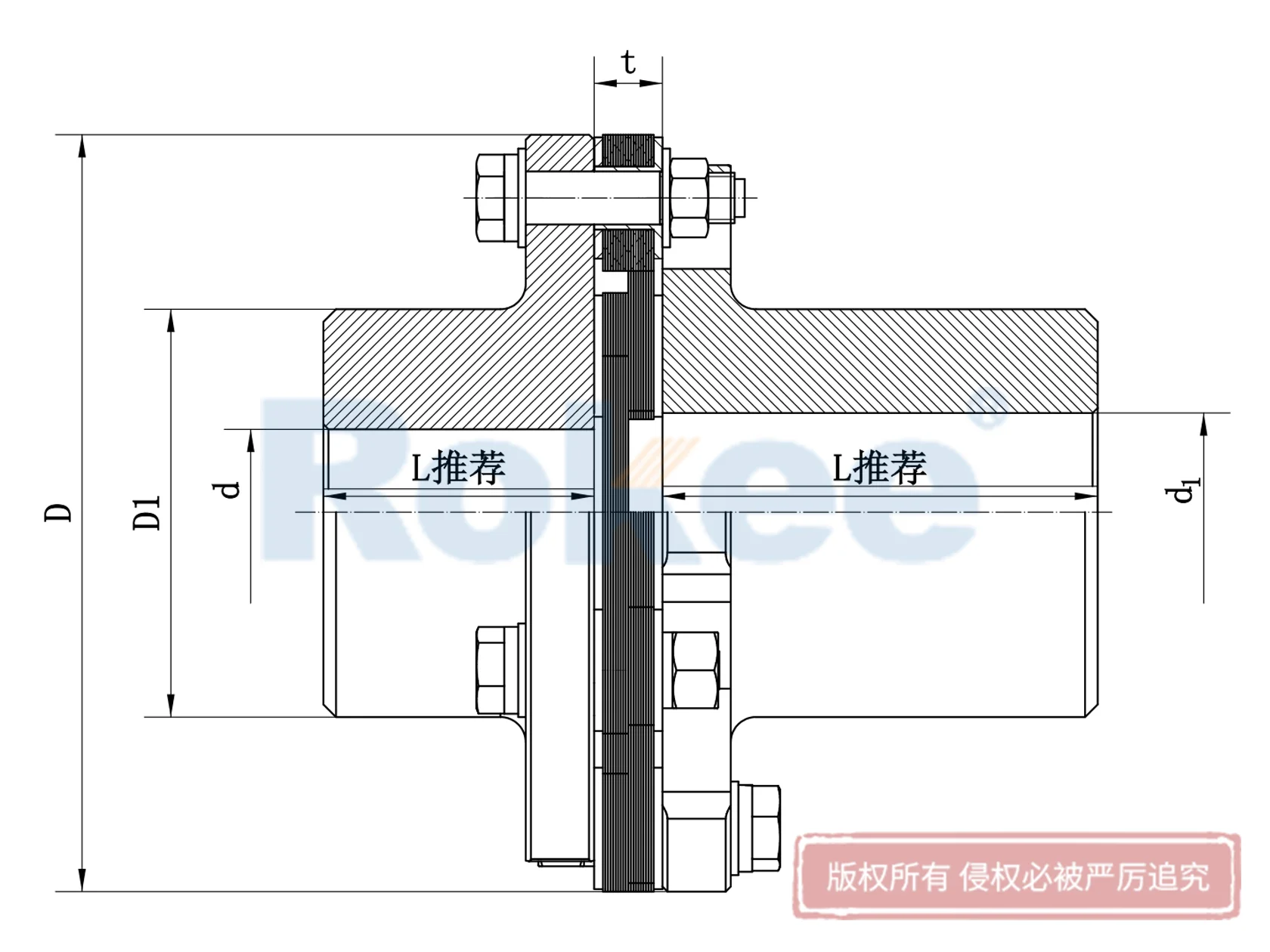

JMII膜片联轴器基本参数

型号公称
转矩
Tn
N·m
瞬时
转矩
Tmax
N·m
转速
nmax
r/min
轴孔直径
d,d1
mm
轴孔长度
mm
D
mm
D1
mm
t
mm
扭转
刚度
×106
N·m/rad
质量
m
kg
转动
惯量
I
kg·m2
J1 型Y 型L推荐
LL
JMII14063107001427323580398 ± 0.20.370.90.0005
16,18,193042
20,22,243852
25,284462
JMII263100930020,22,2438524092530.451.40.0011
25,284462
30,32,35,386082
JMII3100200840025,28446245102630.562.10.002
30,32,35,386082
40,42,4584112
JMII4250400670030,32,35,386082551287711 ± 0.30.814.20.006
40,42,45,48,50,5584112
JMII5500800590035,38608265145911.26.40.012
40,42,45,48,50,55,5684112
60,63,65107142
JMII68001250510040,42,45,48,50,55,56841127516810514 ± 0.31.429.60.024
60,63,65,70,71,75107142
JMII710002000475045,48,50,55,56841128018011215 ± 0.41.912.50.0365
60,63,65,70,71,75107142
80132172
JMII816003150430050,55,56841122001202.3515.50.057
60,63,65,70,71,75107142
80,85132172
JMII925004000420055,568411220520 ± 0.42.716.50.065
60,63,65,70,71,75107142
80,85132172
JMII1031505000400055,5684112902151283.0219.50.083
60,63,65,70,71,75107142
80,85,90132172
JMII1140006300365060,63,65,70,71,7510714210023513223 ± 0.53.46250.131
80,85,90,95132172
JMII1250008000340060,63,65,70,71,751071422501453.67300.174
80,85,90,95132172
100167212
JMII13630010000320063,65,70,71,751071421102701555.2360.239
80,85,90,95132172
100,110167212
JMII14800012500285065,70,71,7510714211530016227 ± 0.67.8450.38
80,85,90,95132172
100,110167212
JMII151000016000270070,71,751071421253201768.43550.5
80,85,90,95132172
100,110,120,125167212
JMII16125002000024507510714214035018632 ± 0.710.23750.85
80,85,90,95132172
100,110,120,125167212
130202252
JMII171600025000230080,85,90,9513217214537020310.97851.1
100,110,120,125167212
130,140202252
JMII182000031500215090,9513217216540023013.071151.65
100,110,120,125167212
130,140,150202252
160242302
JMII1925000400001950100,110,120,12516721217544024538 ± 0.914.261502.69
130,140,150202252
160,170242302
JMII2031500500001850110,120,12516721218546026022.131703.28
130,140,150202252
160,170,180242302
JMII2135500560001800120,12516721220048028023.72004.28
130,140,150202252
160,170,180242302
190,200282352
JMII2240000630001700130,140,15020225221050029524.62305.18
160,170,180242302
190,200282352
JMII2350000800001600140,15020225222054031044 ± 129.712757.7
160,170,180242302
190,200,220282352
JMII2463000100000145015020225224060033550 ± 1.232.643809.3
160,170,180242302
190,200,220282352
240330410
JMII25800001250001400160,170,18024230225562035050 ± 1.237.6941015.3
190,200,220282352
240,250330410
JMII2690000140000130018024230227566038550.4351020.9
190,200,220282352
240,250,260330410
JMII271120001800001200190,200,22028235229572041060 ± 1.471.5162032.4
240,250,260330410
280380470
JMII28140000200000115022028235230074042093.3768036
240,250,260330410
280,300380470
JMII291600002240001100240,250,260330410320770450114.5378043.9
280,300,320380470
JMII301800002800001050250,260330410350820490130.7695060.5
280,300,320380470
340450550
