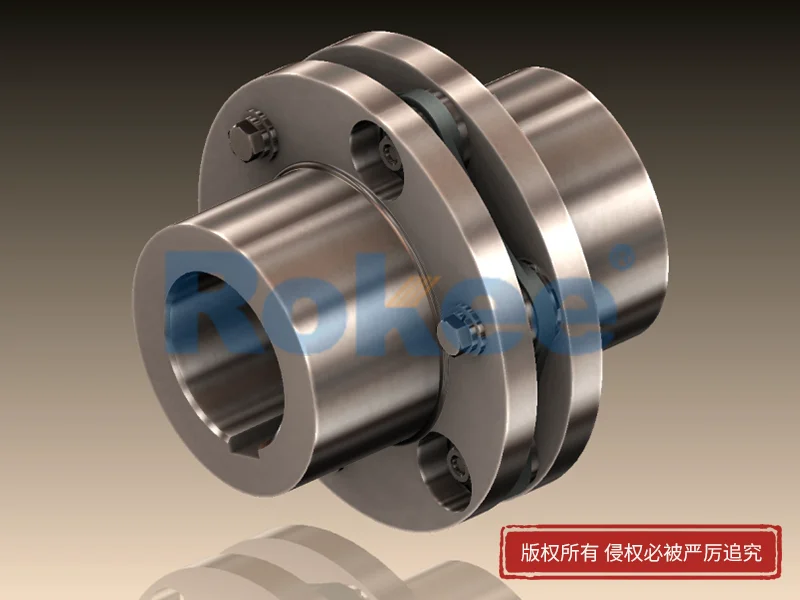

JMI膜片联轴器

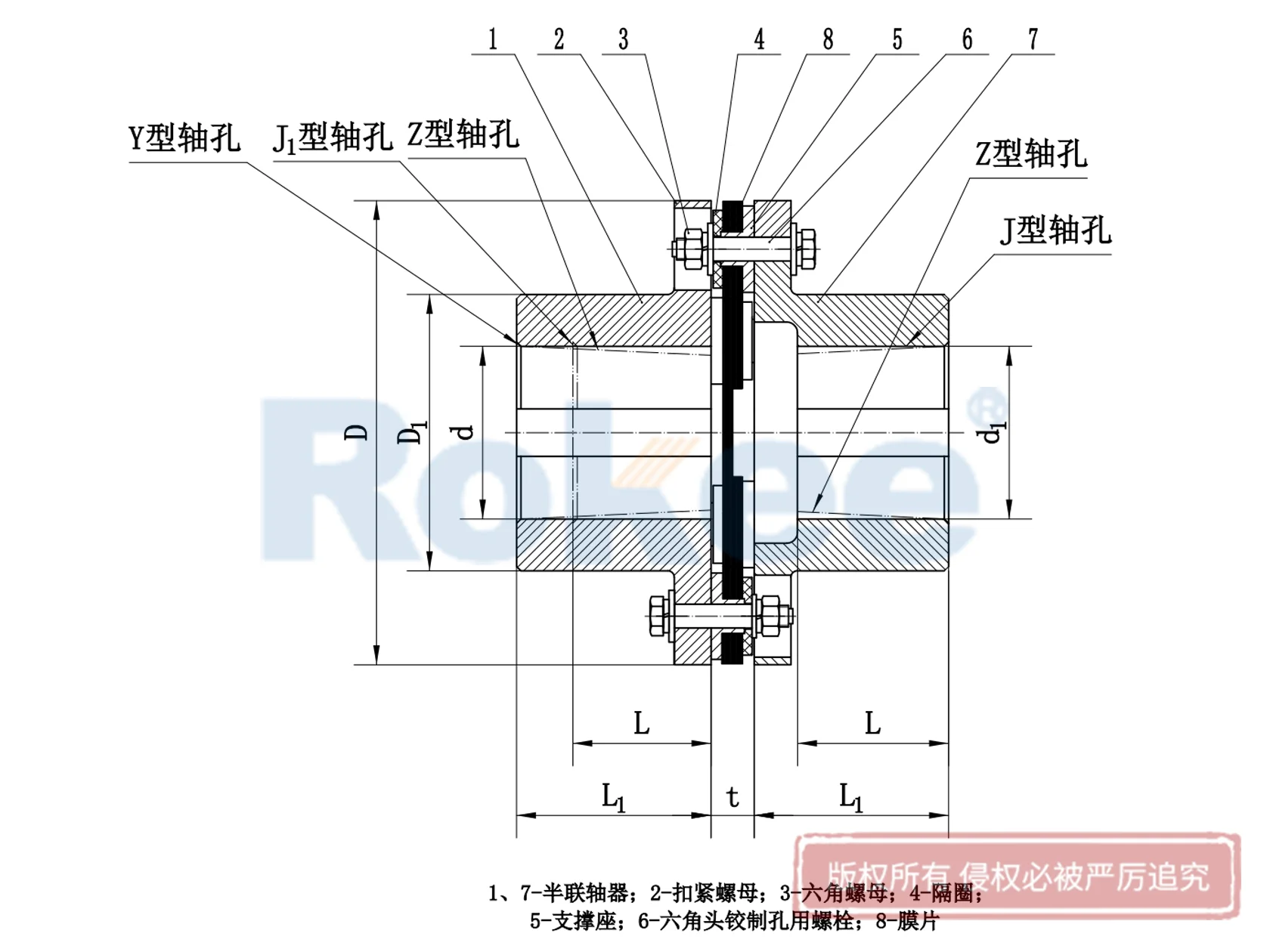

JMI金属膜片联轴器采用单节式设计,适用于传递距离较短的场合一端半联轴套带有沉孔,方便轴端的固定。

JMI膜片联轴器基本参数

型号公称
转矩
Tn
N ·m
瞬时
转矩
Tmax
N ·m
许用
转速
[n]
r/min
轴孔直径
d,d1
mm
轴孔长度
mm
D
mm
t
mm
扭转
刚度
C
N·m/rad
质量
m
kg
转动
惯量
I
kg·m2
Y 型J 、J1 、Z 、Z1 型L推荐
LLL1
JMI1258060001432J1 型 27
Z1 型 20
35908.81×10410.0007
16,18,194230
20,225238
JMI263180500018,194230451009.51.4×1042.30.001
20,22,245238
256244
JMI310031520,22,24523850120111.87×1042.30.0024
25,286244
308260
JMI416050045002452385513012.53.12×1043.30.0024
25,286244
30,32,358260
JMI5250710400028624460150144.32×1045.30.0083
30,32,35,388260
4011284
JMI64001120360032,35,388282606517015.56.88×1048.70.0159
40,42,45,48,5011211284
JMI76301800300040,42,45,48107702101910.35×10414.30.0432
50,55,56,60142
JMI810002500280045,48,50,55,561121128480  24022.516.11×104220.0879
60,63,65,70142107
JMI916004000250055,5611284852602426.17×104290.1415
60,63,70,71,75142107
80172132
JMI1025006300200063,65,70,71,7514214210790  280177.88×104520.2974
80,85,90,95,75172132
JMI11400090001800751421421079530019.510.49×104690.4782
80,85,90,95172172132
100,110212167
JMI12630012500160090,951721321203402314.07×104940.8067
100,110,120,125212167
JMI1310000180001400100,110,120,1251353802819.2×1041281.7053
130,140252202
JMI1416000280001200120,125212167150  4203130.0×1041842.6832
130,140,150252202
160302242
JMI1525000400001120140,15025220218048037.547.46×1042624.8015
160,170,180302242
JMI1640000560001000160,170,1802005604148.09×1043849.4118
190,200352282
JMI176300080000900190,200,2202206304710.13×10456118.3753
140410330
JMI1810000012500080022035228225071054.516.14×10472328.2033
240,250,260410330
JMI19160000200000710250,2602808004879.8×104126766.5813
280,300,320470380
